2.1 TV Screen Mode
VDP2 can display images in 31 kHz monitors as well as high-vision monitors, and in
NTSC and PAL standards for TV. There are three kinds of image displaying TV
screen modes: normal, high-resolution, and special monitor. Screen scan format can
be selected from three types: non-interlace, single-density interlace, and double-
density interlace. A register showing TV scan conditions is also provided.
Table 2.1 shows the TV screen modes that are selectable, the graphics mode, and the
current resolution. Furthermore, special settings are required when indicating
special high-resolution graphics A and special high-resolution graphics B.

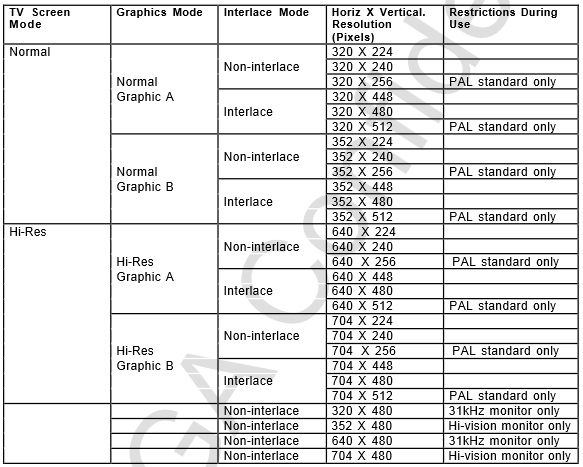

Table 2.1 TV Screen mode
http://i102.photobucket.com/albums/m...ps5af8465d.png
Special High-Resolution Graphics Mode
The graphics mode of special high-resolution graphics A or B displays one screen by
joining the NBG0 and NBG1 screens. If the following setting is not performed, the
display will not appear correctly.
• Must be able to display only NBG0 and NBG1.
• The NBG0 and NBG1 character pattern tables (or, bit map pattern) and pattern
name tables must use the exact same data.
• Must be able to reduce both NBG0 and NBG1 horizontally up to 50%.
• Set the vertical direction screen scroll values of NBG0 and NBG1 so that they
are identical.
• Set the NBG1 horizontal screen scroll value at the NBG0 horizontal screen
scroll value plus 1.
• Set both NBG0 and NBG1 horizontal coordinate increments at 2.
• Set the color RAM mode to 0.
• Set the priority numbers of NBG0 and NBG1 at the same value.
• Do not enter the line color screen.
• Special priority of both NBG0 and NBG1 should be in mode 0.
• Do not use the color calculation function.
• For registers other than those listed above, NBG0 and NBG1 settings should
be the same
